Vina Hypoxic system can be integrated to any environmental chamber to simulate the altitude control. The altitude control and up to max 9000m altitude.
The hypoxic air is generated by the physical method which is safe for human use
The hypoxic air is generated by the physical method which is safe for human use

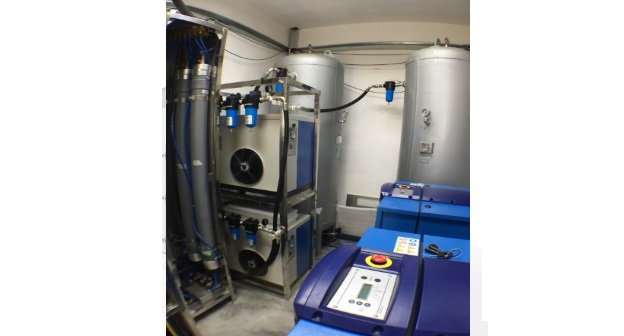

The Hypoxic System Consists Of
- Air Compressor
- Dryer
- Hypoxic Membrane Modules
- Pressure Vessel
- LCD Touch Screen Controller
- Filters
- Control Valves
- Siemens PLC with HMI LCD touch screen controller,digital display
- With altitude(m) and O2(%) display
- O2 range:20.9% to 6% ± 0.1%
- Altitude:up to 9000m
- Hypoxic hollow fiber membrane
- “SPX”four-step filtration:ultra oil filter,carbon filter,air filter and water filter
- SMC Control valve system
- Control unit and safety control system
- Non-drift oxygen sensor
- Scheduled start / stop operation
- Alarm dispaly
- O2 injection system
- Data storage:USB memory flash
- With history display of error record
- Rotary screw type compresspr,10 bar working pressure
- Refrigerated dryer
- Pressure vessel
- Power supply:3phase 380Vac or 415Vac
