Vina hypoxic system can be integrated into any environmental chamber to simulate the altitude control. We can build the system for our chamber or other’s room. We also offer a hypoxic system for sleeping rooms, gym room,s and hotel. The altitude control and up to max 9000m altitude. The hypoxic air is generated by the physical method which is safe for human use.
Air Compressor System
- Rotary screw type air compressor
- Working pressure: 10 bar
- Airflow rate: 120cfm@10bar
- Pressure vessel: > 1000L capacity
- Sound reducing silencers:

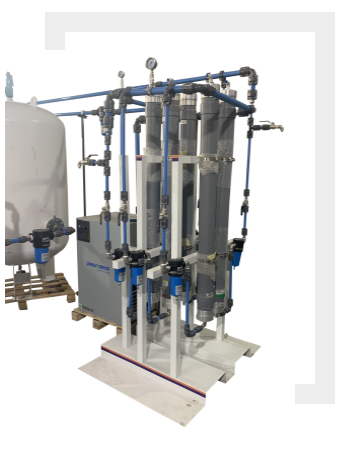

Air Compressor System
- Hollow fiber membrane modules
- Hypoxic air : 4%@O2
- Working pressure: 8-10bar
- Inlet: 3/8” thread
- Outlet: 3/8” thread with pressure gauge
- Control valve modules
LCD Touch Screen Controller
- PLC: Siemen SR30-AE04
- Display: Kinco 7″, 10″ or 15″
- Operation mode: Fix mode or program mode
- Setting: by altitude (m) or O2 (%)
- Display both altitude (m) and O2%
- Multi-screen display available
- User name and password access (option)
- Alarm history record
- Data recording on flash card
- Sensor bias adjustment: 8-pieces adjustment
- With reserve function
- With remote control by tablet or mobile

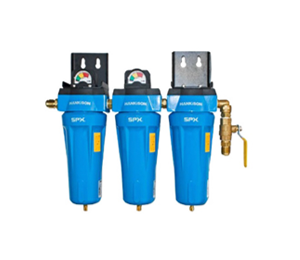

Four Stage Filters
Water filters filter ultra-oil filter with pressure gauge with pressure differential color indicator with auto drain with life display on air compressor
Sensors
